Forward-Facing Sonar Buyer’s Guide 2026: LiveScope vs ActiveTarget vs MEGA Live

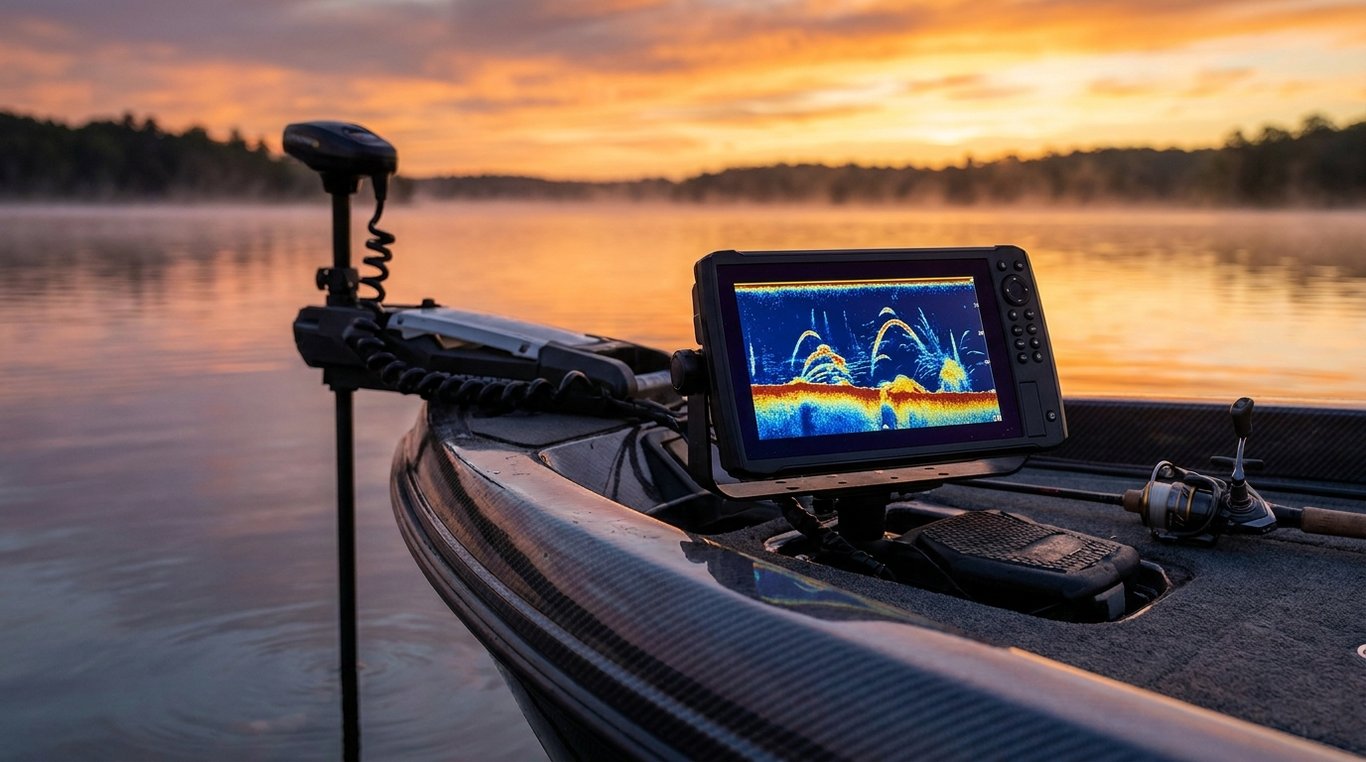

Bass boat deck with a large sonar screen mounted on the bow showing a forward-facing sonar image at sunrise

If you're pricing your first live sonar setup in 2026, you already know it's the biggest tackle purchase you'll ever make short of a boat and motor. A transducer and module together will run you the price of a decent used pickup truck bed, and the display you need to see it properly can push the whole rig past four grand.

The good news: forward-facing sonar has matured. The three systems that matter — Garmin LiveScope, Lowrance ActiveTarget, and Humminbird MEGA Live — are all in their second generation now, and each one has settled into a personality. There's no longer a clear "best" answer for every angler. There's a best answer for your boat, your electronics, and how you actually fish.

This guide breaks down the current lineup, real street prices, what each system does well, and how to pick without regret.

What forward-facing sonar actually is

Traditional 2D sonar shows you what's under the boat, right now, as a scrolling history. Down imaging shows a photo-like slice directly beneath. Side imaging paints the bottom out to either side.

Forward-facing sonar (FFS) is different. It shoots a live sonar beam out in front of the boat and shows fish, bait, cover, and your lure moving through the water column in real time — like an underwater radar screen. You aim the transducer by rotating your trolling motor, and you can literally watch a bass swim over, look at your jerkbait, refuse it, then follow it back. It changed tournament fishing so completely that Bassmaster ran a coin-flip vote on banning it at four Elite Series events for 2026.

All three brands do the same fundamental job. The differences are in image quality, integration with your existing electronics, and how the software handles clutter, shallow water, and long-distance targets.

Garmin LiveScope Plus (LVS34)

Street price: ~$1,399 transducer only · ~$1,999 system with GLS 10 black box Best for: Anglers already running Garmin ECHOMAP or GPSMAP units, and anyone who prioritizes shallow-water clarity.

The LVS34 is the reel that put "livescoping" into the bass fishing vocabulary. It's still the reference standard for image quality inside 60 feet, and it's the transducer you'll see on most tournament decks in the country. Frequency range is 530–1,100 kHz, transmit power is 500 W, and the beam gives you Forward, Down, and Perspective (top-down) modes from a single head.

Specs to know:

Depth range: 200 feet forward, 200 feet down (3-foot minimum)
Beam: ~20° in Forward mode
Power draw: ~21 W typical, 58 W max
Cable: 20 feet, 21-pin
Weight: 2.25 lbs

Garmin's edge is target separation up close. If you fish grass edges, shallow docks, or timber in less than 15 feet of water, LVS34 renders fish and bait with a crispness the other two systems have not matched. The tradeoff is that it needs a modern Garmin display with a black box (the GLS 10) to run, and Garmin's user interface is the fussiest of the three to dial in when you're first starting.

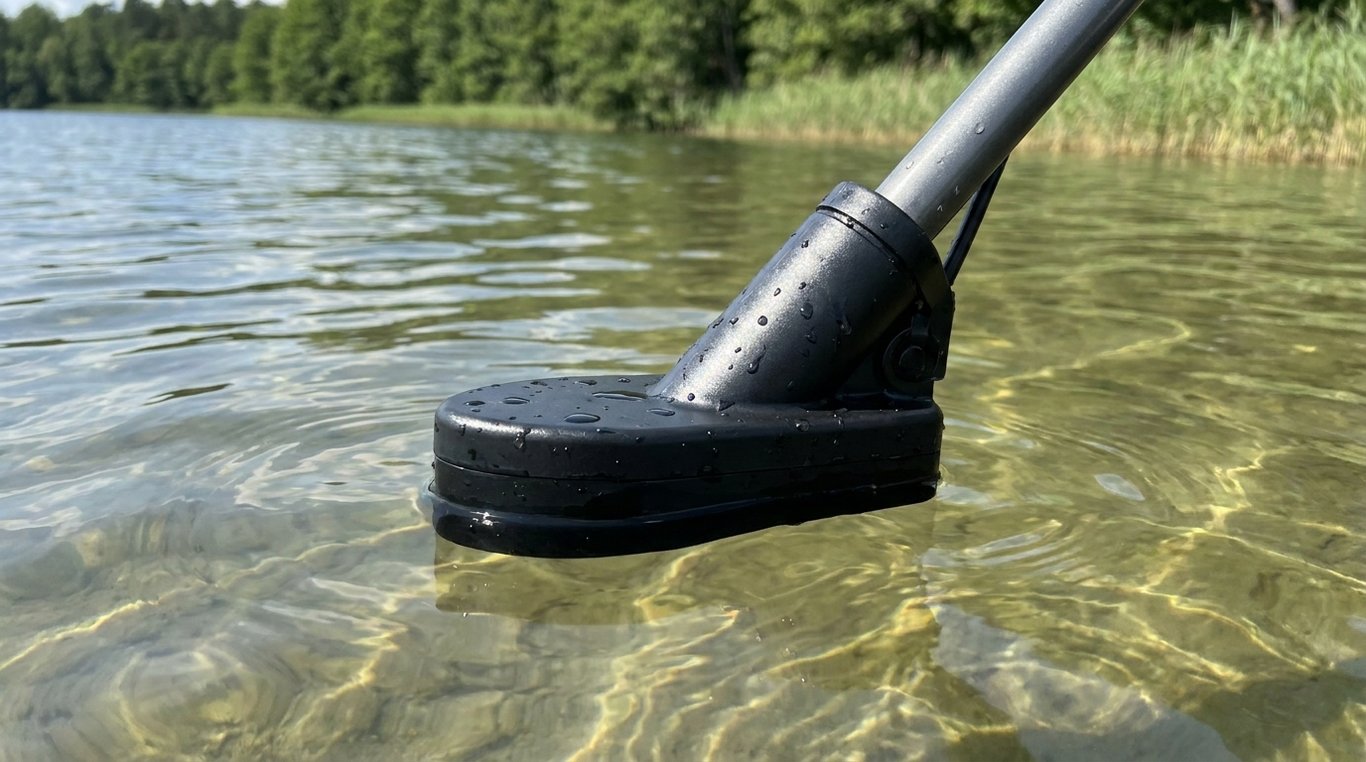

Close-up of a forward-facing sonar transducer mounted on a trolling motor shaft in shallow water

Garmin LiveScope XR (LVS62)

MSRP: ~$2,499 transducer only · ~$2,999 system with GLS 10 black box Best for: Deep-water anglers, offshore ledge fishermen, and coastal/striper crowds who need range beyond 100 feet.

The XR is Garmin's long-range answer. Same platform as LiveScope, different transducer geometry: a lower frequency range (265–550 kHz), a wider Forward beam (~135° in Perspective mode, ~20° forward), and stated range of up to 500 feet in freshwater and 350 feet in saltwater. Depth capability is dramatically deeper than LVS34.

If you fish Table Rock ledges, Kentucky Lake humps, offshore reservoirs, or big-water striper schools, XR is the transducer that pulls fish out at 80–150 feet with usable clarity. In water shallower than about 15 feet, LVS34 still looks better — the XR is not a "one transducer for everything" purchase. Some serious offshore anglers own both and swap depending on the trip.

Lowrance ActiveTarget 2 XL

Street price: ~$1,399 transducer only · ~$1,799 transducer + ActiveTarget 2 module bundle Best for: HDS Pro / HDS Live / Elite FS owners who want the widest field of view and one-tap mode switching.

The XL is Lowrance's 2026 flagship live sonar and the direct answer to LiveScope Plus. The big story is field of view: Lowrance quotes a 180-degree sweep, notably wider than what the LVS34 shows in a single beam. On screen you get Forward XL, Down XL, and Scout XL (top-down) modes, and you can toggle between them from the head unit without repositioning the transducer.

What the XL does well:

The widest sightlines in the category — you see more water on each cast
One-touch mode switching from the HDS/Elite FS screen (no manual transducer flip)
Uses the same ActiveTarget 2 module as the previous transducer, so upgrade cost is lower for existing owners
Includes a shaft mount in the box

What to weigh: Lowrance requires an HDS Pro, HDS Live, HDS Carbon, or Elite FS unit to run. If your boat is already wired for Lowrance mapping and 2D sonar, the ecosystem fit is seamless. If it isn't, you're buying a display too.

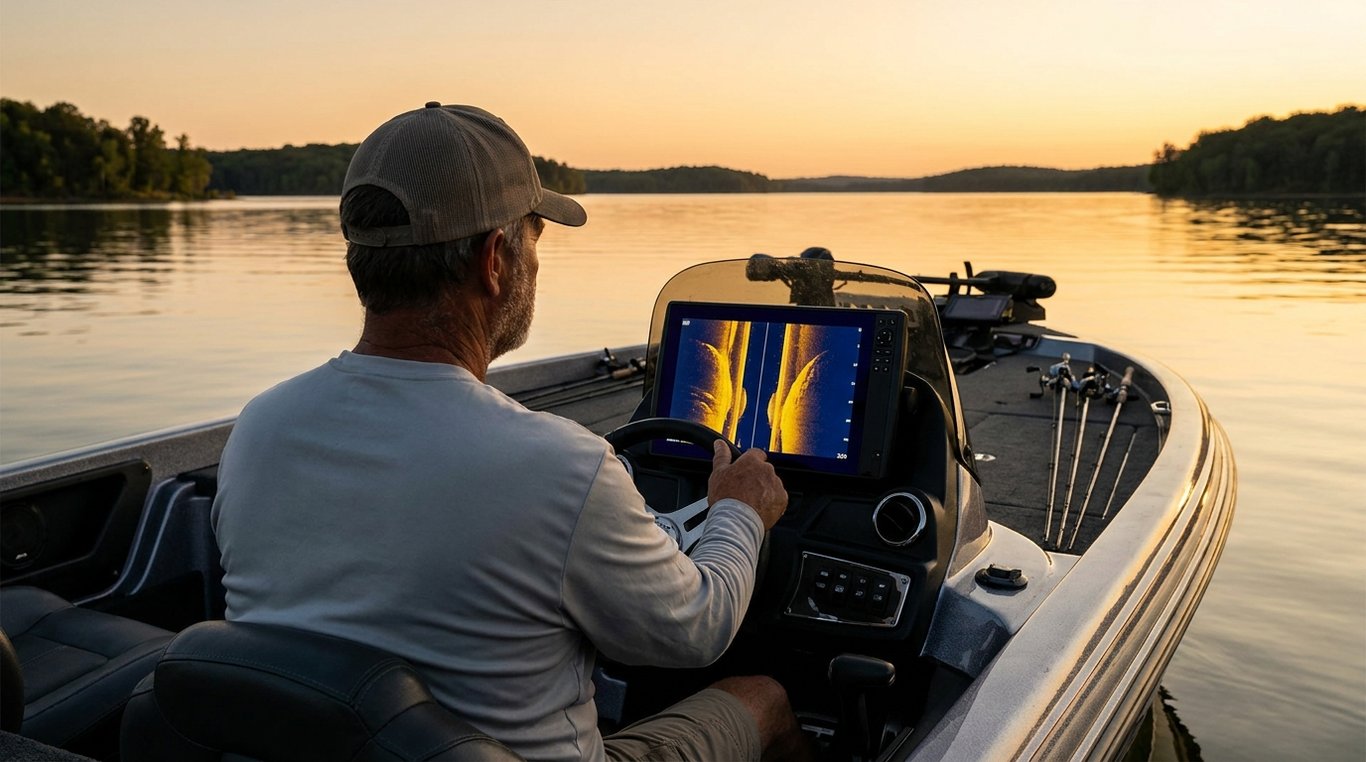

Angler at the console of a bass boat looking at a large fish-finder screen showing live sonar

Humminbird MEGA Live 2

Street price: ~$1,399 transducer Best for: Anglers running Humminbird XPLORE, APEX, or SOLIX G3 fish finders, especially those with a Minn Kota Ultrex who want tight trolling-motor integration.

MEGA Live 2 is Humminbird's second-generation live sonar and it made the biggest jump of any brand between generations. TargetBoost — Humminbird's signal processing engine — cleans up the on-screen image with less background noise, better bait-cloud separation, and more stable rendering when the boat is being pushed by wind. Forward range is up to 150 feet, and the transducer offers Forward, Down, and Landscape (wide) views with 15 color palette options.

The real advantage if you already own a Humminbird boat is integration. MEGA Live 2 talks to Minn Kota Ultrex, Fortrex, Maxxum, and Edge trolling motors, and pairs cleanly with MEGA 360 Imaging if you run both — one motor shaft, two transducers, coordinated view.

Compatibility to check: MEGA Live 2 works with XPLORE, APEX, and SOLIX G3 heads. It does not work with older HELIX units without an upgrade path — if you're on a HELIX 10 or 12, the whole display will need to be replaced too.

The head-to-head: which system fits which angler

Nobody buys live sonar in isolation. The right pick almost always comes down to what electronics are already on your boat, because a compatible transducer on the wrong display is a $1,400 paperweight.

Already run Garmin ECHOMAP or GPSMAP? LiveScope Plus for shallow-water tournament fishing, LiveScope XR if most of your fishing happens in 30+ feet of water or on saltwater. You'll need the GLS 10 black box unless your existing head unit has LiveScope compatibility built in.

Already run Lowrance HDS or Elite FS? ActiveTarget 2 XL. If you're upgrading from original ActiveTarget 2, you can keep your existing module and just buy the transducer, which is the cheapest upgrade path in the whole category.

Already run Humminbird APEX, SOLIX G3, or XPLORE? MEGA Live 2. Especially compelling if you're on a Minn Kota Ultrex — the whole system is designed to work as one unit.

Building a boat from scratch? This is the harder call. Talk to two or three anglers on the lakes you fish before you commit — different bodies of water reward different systems. Grass lakes and shallow tidal fisheries lean Garmin. Big offshore reservoirs and river systems where wind is a factor lean Humminbird for stability. Wide-open flats fisheries where you're scanning big water lean Lowrance for field of view.

Bass boat idling on a large open reservoir at dawn with fog on the water

What you actually pay to get on the water

The transducer is the marketing headline, but the real out-the-door number is higher than most first-time buyers plan for. Here's what a complete, working FFS setup looks like at the register in fall 2026:

Transducer: $1,399 (all three brands, standard version)
Module or black box: $400–$500 if you don't already own one (Garmin GLS 10, Lowrance ActiveTarget 2 module)
Compatible head unit: $800–$4,500 depending on screen size and brand
Trolling motor shaft mount: $50–$150 if not included
Installation and wiring: $150–$400 if you pay a shop

A complete new-boat setup — display, module, transducer, and mount — realistically lands between $2,500 (Elite FS 7 + ActiveTarget 2 + XL transducer) and $6,000+ (Garmin GPSMAP 8616xsv + GLS 10 + LiveScope XR). Existing-electronics upgrades are far cheaper: if you already run a compatible display, you're often out the door for $1,400–$1,800.

Is forward-facing sonar worth it in 2026?

For tournament anglers, the answer settled itself years ago — you're at a real disadvantage against fields who have it. For weekend anglers, the honest answer is that it depends on how you fish. If you spend most of your time fishing shoreline structure with plastics and topwaters in shallow water, a good side-imaging setup catches you nearly as many fish. If you fish open-water bass, offshore reservoirs, deep grass edges, or suspended fish in the middle of the day, live sonar changes what's possible.

The learning curve is also real. Nobody plugs in LiveScope on Saturday morning and fillet fish that afternoon. Plan for six to ten trips of practice before it stops feeling like an expensive video game and starts feeling like a fishing tool.

Frequently Asked Questions

What's the cheapest way to get into forward-facing sonar in 2026? If you already own a compatible head unit, the transducer-only route runs about $1,399. If you own an original Lowrance ActiveTarget 2 module and an HDS or Elite FS display, upgrading to the ActiveTarget 2 XL transducer only is currently the cheapest complete-system upgrade in the category. If you own nothing, plan for $2,500–$3,000 minimum for a working setup.

Do I need a black box to run Garmin LiveScope? Yes, in most cases. The GLS 10 black box is the processing brain for both LiveScope Plus (LVS34) and LiveScope XR (LVS62), and it's required unless your existing Garmin head unit has LiveScope processing built in. Most current ECHOMAP UHD 2 and GPSMAP units still route through the GLS 10.

Which forward-facing sonar has the longest range? Garmin LiveScope XR (LVS62), with a stated range of up to 500 feet in freshwater and 350 feet in saltwater. Lowrance ActiveTarget 2 XL and Humminbird MEGA Live 2 are optimized for typical bass-fishing ranges — MEGA Live 2 is rated to 150 feet of forward range, which is more than enough for the vast majority of freshwater applications.

Is MEGA Live 2 compatible with HELIX fish finders? No. MEGA Live 2 works only with Humminbird XPLORE, APEX, and SOLIX G3 head units. If you're currently running a HELIX, you'll need to upgrade the display as well as add the transducer.

Will forward-facing sonar be banned in bass tournaments? Some events, yes. Bassmaster's Elite Series ran a live coin-flip vote in September 2026 that resulted in FFS restrictions at four 2026 venues (Guntersville, Tenn-Tom, Santee Cooper, and Champlain). The Bassmaster Classic and St. Lawrence event remain all-tech. Major League Fishing has its own separate rules that vary by event. Local BASS Nation and club tournaments are increasingly limiting or banning FFS as well — check your rulebook before every event.

Can I use one transducer for both shallow and deep water? Not really, if you're being honest about image quality. LiveScope Plus (LVS34) is the shallow-water reference standard but loses clarity past about 60 feet. LiveScope XR is the opposite — dominant beyond 30 feet, mushier in the shallows. Serious offshore anglers with the budget sometimes own both and swap. For a single-transducer solution, ActiveTarget 2 XL and MEGA Live 2 are both reasonable all-around picks in typical freshwater bass depths.

How long does it take to learn forward-facing sonar? Most anglers report six to ten trips before it stops feeling like a video game and starts contributing real fish. The first three or four trips are spent learning how to read your own lure on screen, aim the trolling motor, and interpret what fish are actually doing versus what you think you're seeing. Patience early pays off — the anglers who quit after two frustrating trips never see the payoff.

Prices reflect fall 2026 street prices at major retailers (Tackle Warehouse, Bass Pro Shops, Cabela's) and are subject to change. Specifications sourced from manufacturer product pages (Garmin.com, Lowrance.com, Humminbird.com). BassFishing.World does not have a paid relationship with Garmin, Lowrance, or Humminbird.
